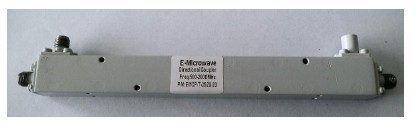

Directional Coupler

Coaxial Coupler

Notes:
1.Operating Temperature: -40 ºC to +70 ºC, Storage Temperature: -55 ºC to +85 ºC.
2. Customization is available. Welcome to ask.

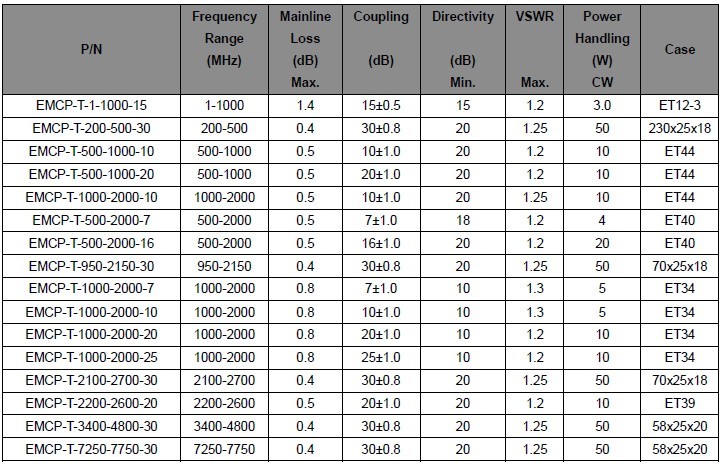

Broadband Directional Coupler

Notes:

1. Operating Temperature: -55 ºC to +85 ºC, Storage Temperature: -55 ºC to +95 ºC.

2. Applications: Indoor, 0-95%RH.

3. Customization is available. Welcome to ask.

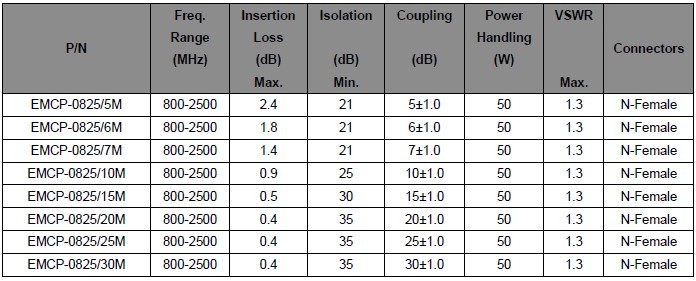

 800~2500MHz Broadband Directional Coupler (Micro-strip)

Notes:
1. Impedance: 50Ohm
2. Operating Temperature: -25 ºC~+65 ºC

Outline Drawing(Unit: mm)

Applications:
1. GSM, CDMA, PCS, DCS, PHS, 3G etc Communication equipments
2. GSM, CDMA, PCS, DCS, PHS,AMPS,SMR,3G Communication systems

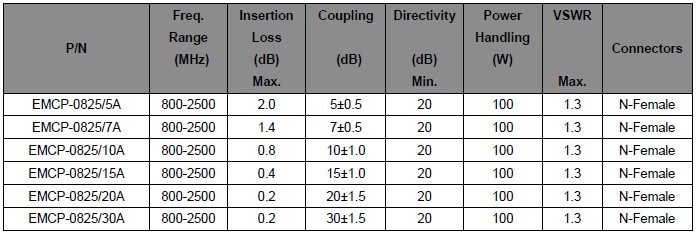

 800~2500MHz Broadband Directional Coupler (Air Dielectric)

 Outline Drawing(Unit:mm)

Features: High Power Handling, Low Insertion Loss

Notes:
1.Impedance: 50Ohms
2.Surface Color: Black
3.Operating Temperature: -25 ºC ~+65 ºC
4.Relative Humidity: 5% ~95%

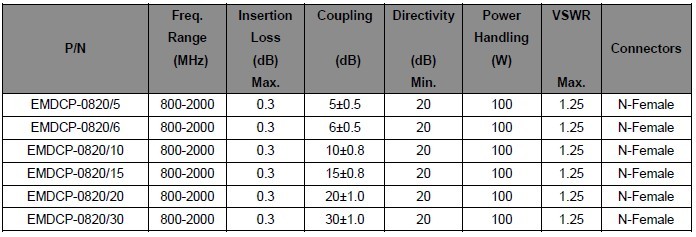

800~2000MHz Dual Directional Coupler

Outline Drawing(Unit:mm)
