Filter

LC Band Pass Filter

10MHz-400MHz

250MHz-950MHz

800MHz-1900MHz

2000MHz-5055MHz

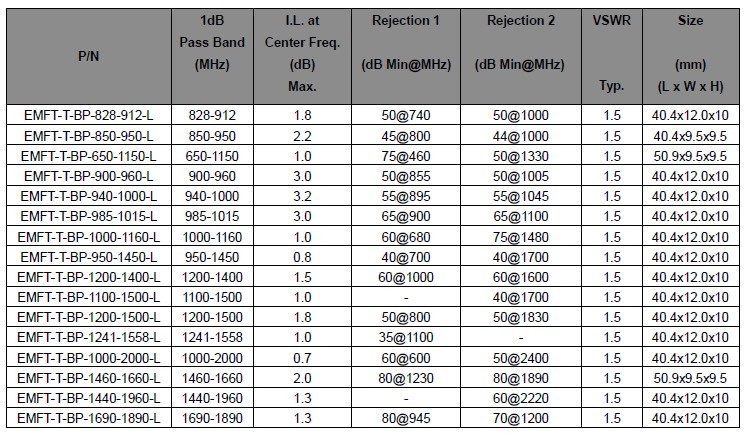

Cavity Band Pass Filter

700MHz-2800MHz

1900MHz-5000MHz

3500MHz-8000MHz

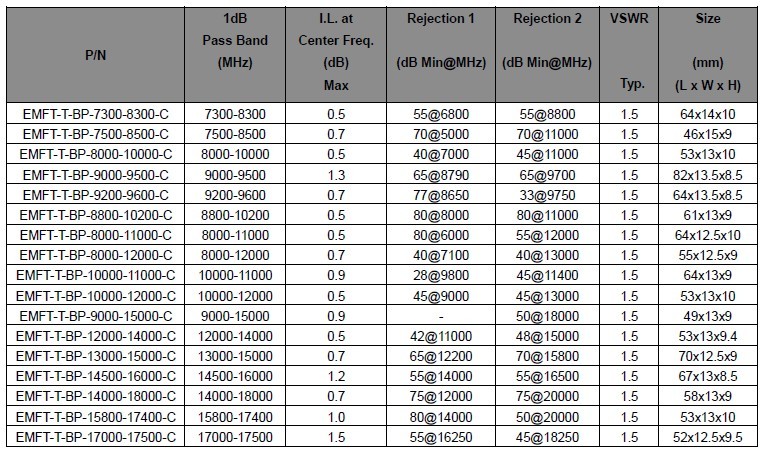

7300MHz-18000MHz

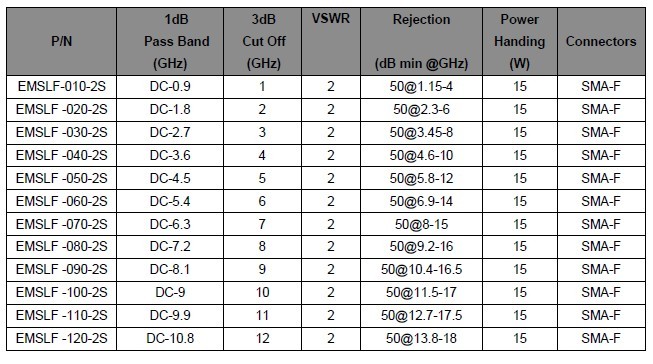

Suspended Substrate Stripline Low Pass Filter Series

Notes:
1, Operating Temperature: -55 ºC to +85 ºC,
2.Storage Temperature: -60 ºC to +90 ºC.
3.Shock: 20G閳ユ獨, 1/2 Sine, 11ms
4.Vibration: 10G閳ユ獨, 10Hz-2000Hz
5.Relatively Humidity: 0 to 95%
6.Customization is available. Welcome to ask.

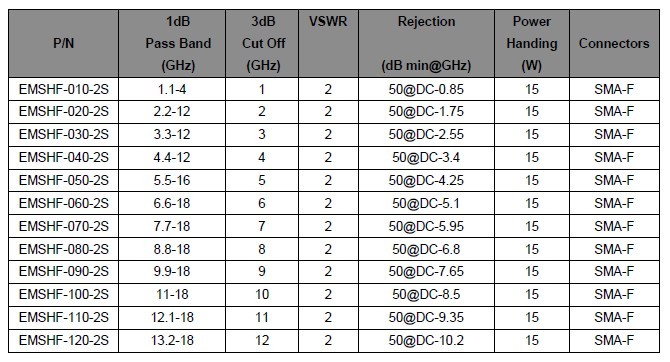

Suspended Substrate Stripline High Pass Filter Series

Notes:
1, Operating Temperature: -55 ºC to +85 ºC,
2.Storage Temperature: -60 ºC to +90 ºC.
3.Shock: 20G閳ユ獨, 1/2 Sine, 11ms
4.Vibration: 10G閳ユ獨, 10Hz-2000Hz
5.Relatively Humidity: 0 to 95%
6.Customization is available. Welcome to ask.

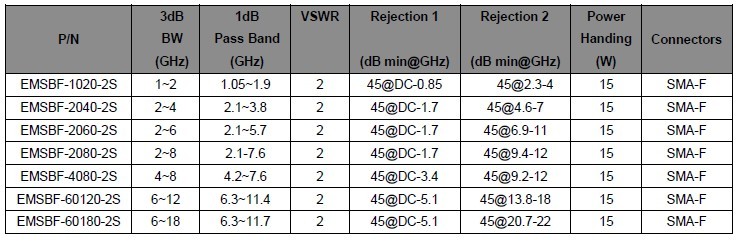

Suspended Substrate Stripline Band Pass Filter Series

Notes:
1, Operating Temperature: -55 ºC to +85 ºC,
2.Storage Temperature: -60 ºC to +90 ºC.
3.Shock: 20G閳ユ獨, 1/2 Sine, 11ms
4.Vibration: 10G閳ユ獨, 10Hz-2000Hz
5.Relatively Humidity: 0 to 95%
6.Customization is available. Welcome to ask.

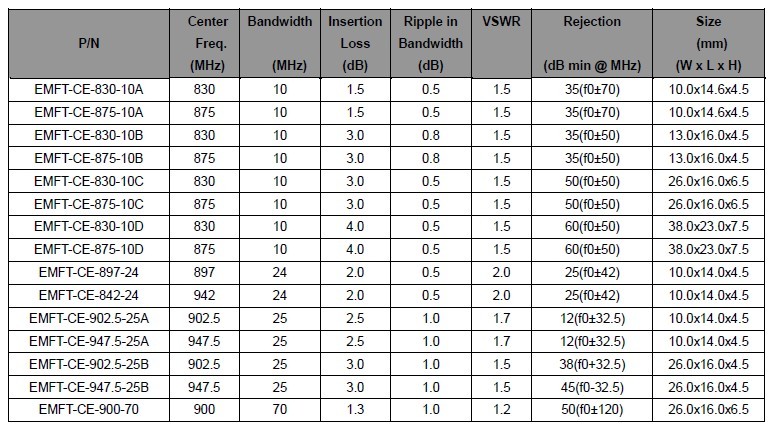

Ceramic Band Pass Filter

800MHz~950MHz

1800MHz~5500MHz

Notch Filter

Notes:
1, Operating Temperature: -40 ºC to +70 ºC, Storage Temperature: -55 ºC to +85 ºC.
2. Customization is available. Welcome to ask.
